Our thermal conductive gel series represent next-generation thermal interface materials (TIMs) specifically engineered for new energy vehicles, power batteries, and high-power electronics.
Utilizing advanced silicone formulations with nano-scale thermal fillers, these gels deliver exceptional thermal conductivity, electrical insulation, and long-term stability.
Superior Thermal Performance
- Industry-leading 10W/(m·K) conductivity
- 40% lower thermal resistance vs conventional pads
Manufacturing Excellence

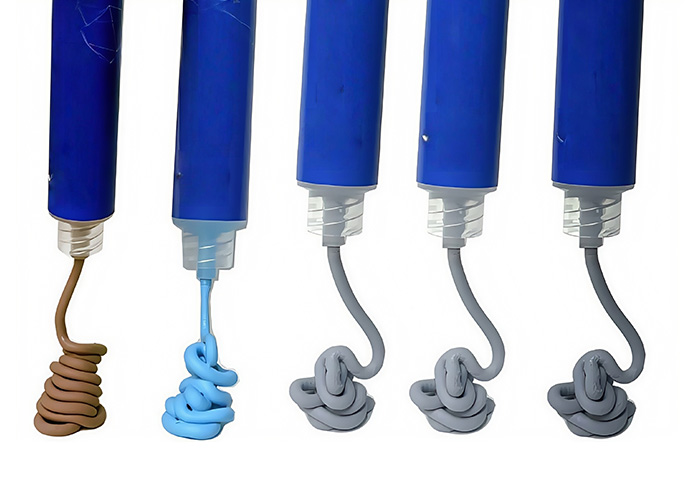

- Syringe packaging for automated dispensing

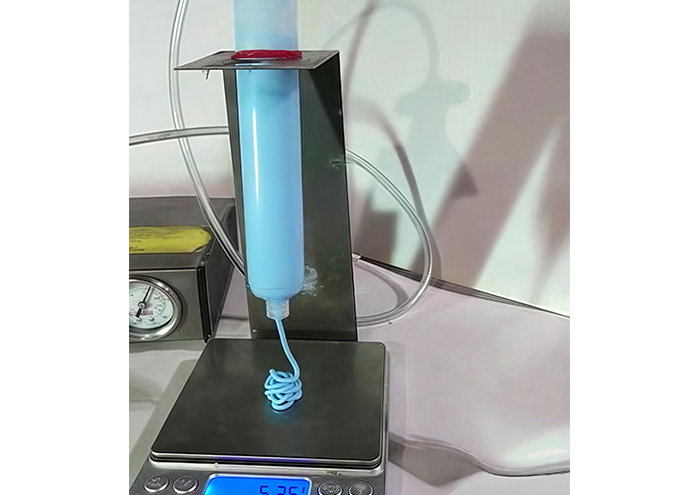

- High flow rate (55g/min) for production efficiency
- 0.1mm precision gap-filling capability
Reliability Assurance
- <0.01% silicone volatility (GC-FID tested)
- 5-year performance warranty at 85℃/85%RH
- Vibration resistant (up to 20G acceleration)
|
Parameter |
Unit |
Typical Value |
Test Standard |
|
Thermal Conductivity |
W/(m·K) |
1.5-10.0 |
ASTM D5470 |
|
Thermal Resistance |
K·cm²/W |
As low as 0.45 |
- |
|
Volume Resistivity |
Ω·cm |
>10¹³ |
ASTM D257 |
|
Dielectric Strength |
KV/mm |
10-20 |
ASTM D149 |
|
Operating Temp |
℃ |
-50~200 |
- |
|
Flame Rating |
- |
UL94 V-0 |
UL94 |
High Thermal Conductivity Series (8W/m·K)
- Thermal conductivity up to 8W/(m·K)
- Single-component, ready-to-use, no curing required
- Ultra-low thermal resistance (0.0001191 K·cm²/W)
Non-Curing Permanent Gel Series
- Maintains gel state indefinitely, reusable
- Ideal for automated robotic assembly lines
- Excellent stress relief for delicate components
Fast-Curing Series
- Two-component room temperature cure (1:1 mix ratio)
- 2.0 W/mK thermal conductivity
- Platinum catalyzed, ROHS/REACH compliant
EMI Absorbing Series
- Dual-function: thermal conduction (2.0W/m·K) + EMI absorption
- μ=6 @1MHz for automotive EMC solutions
- Ultra-soft for fine gap filling (<0.1mm)
- Battery module inter-cell gap filling
- Domain controller chip cooling
- OBC/DC-DC converter thermal management
- ESS battery stack thermal equalization
- PCS power module interface
- AAU/RRU power amplifier cooling
- Baseband unit processor TIM
- Robot servo drive IGBT cooling
- HMI display thermal management
Technical Leadership - 15+ patents in thermal material technology
Global Certifications - Compliant with UL, REACH, IEC 62368
Custom Solutions - Tailored viscosity/thixotropy for your process
Scale Production - ISO-13485 certified facility with 1000MT/year capacity
- Bulk shipments save 15-20% on freight
- Inventory management support
- MOQ 500 kg, bulk discounts available
- Flexible payment terms
- Global shipping by sea/air/land
- Multiple packaging options
- Stock available for quick shipment
- Just-in-time delivery options
