Max-4100 is a premium thermal grease engineered for superior heat dissipation in electronic devices.
Formulated with silicone-based matrix and nano-scale thermal fillers, it delivers exceptional thermal conductivity, electrical insulation, and long-term stability.
Ideal for CPUs, GPUs, power modules, and high-power LEDs.
Standard (1-3 W/m·K) – Budget, non-conductive
Metal-Based (4-12 W/m·K) – High-performance (CPU/GPU)
Liquid Metal (30-80 W/m·K) – Extreme cooling (conductive)
Carbon (5-15 W/m·K) – Non-conductive, stable
Phase Change (3-8 W/m·K) – No dry-out, industrial use
|
Parameter |
Specification |
|
Product Code |
Max-4100 |
|
Appearance |
Gray/white paste |
|
Thermal Conductivity |
Thermal Conductivity |
|
Thermal Conductivity |
5.5 W/(m·K) (tested) |
|
Thermal Resistance |
0.049 ℃/W (ASTM D5470) |
|
Operating Temperature |
-50℃ to +250℃ |
|
Dielectric Strength |
≥500 V/mil (0.01" thickness) |
|
Volume Resistivity |
≥1.2×10¹⁴ Ω·cm |
|
Oil Separation |
≤2% (24h@300℃) |
|
Volatile Content |
≤1% (24h@200℃) |
|
Density |
2.6 g/cm³ |
|
Viscosity |
300,000–400,000 mPa·s |
|
Cure Type |
Non-curing (remains paste-like) |
|
Recommended Thickness |
0.01–0.1 mm |
Ultra-High Thermal Performance
Nano Al₂O₃ + BN composite fillers enable 5.5 W/(m·K) conductivity
Low thermal resistance (0.049 ℃/W) reduces chip temperature by 10–15℃
Exceptional Reliability
No drying/cracking after 1000h aging test
Stable performance from -50℃ to 250℃
Safe & Eco-Friendly
Non-conductive (≥10¹⁴ Ω·cm) and non-corrosive
Complies with RoHS, REACH
Easy Application
Smooth paste for manual dispensing or automated printing
Non-curing formula simplifies maintenance

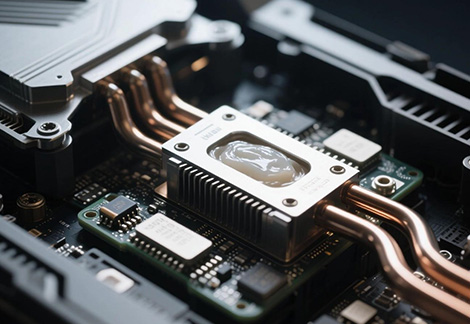

- CPU/GPU cooling (PCs, game consoles)
- Smartphone/tablet thermal management

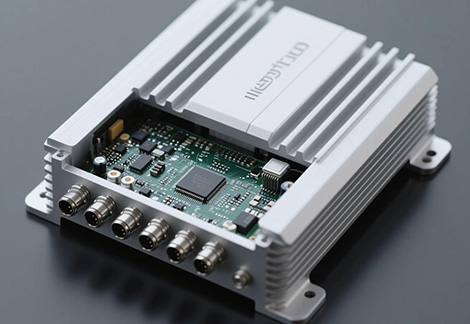

- IGBT modules (EV inverters)
- High-power LED drivers

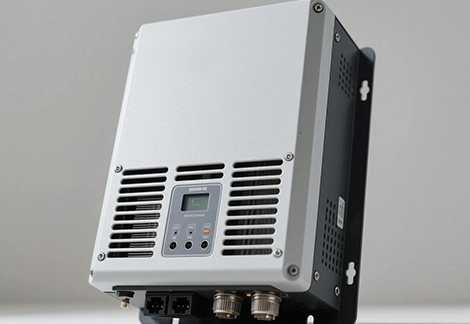

- PV inverters (MOSFET cooling)
- Battery BMS thermal optimization
Custom Formulations: Adjust filler ratios for optimized performance
Global Certifications: UL, A-A-56022 compliant
Mass Production:30+ tons/month capacity
Technical Support: Free samples + thermal design consulting
- Bulk shipments save 15-20% on freight
- Inventory management support
- MOQ 500 kg, bulk discounts available
- Flexible payment terms
- Global shipping by sea/air/land
- Multiple packaging options
- Stock available for quick shipment
- Just-in-time delivery options
