This 100% solid, solvent-free coating is primarily classified into three categories:
Epoxy Powder Coatings (E): Excellent insulation and corrosion resistance, ideal for indoor metal products
Polyester Powder Coatings (P): Outstanding weatherability and UV resistance, specially designed for outdoor applications

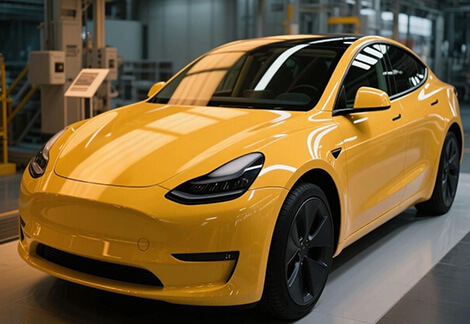

Epoxy-Polyester Hybrid (PE): Combines the advantages of both resins, offering balanced decorative and mechanical properties for automotive, appliances and other industries

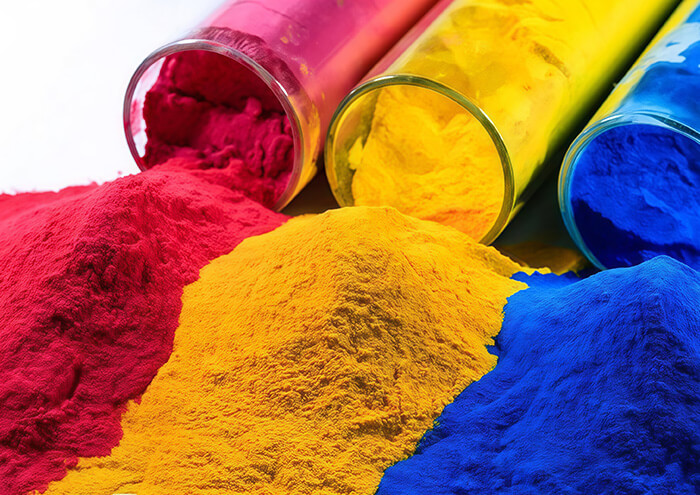

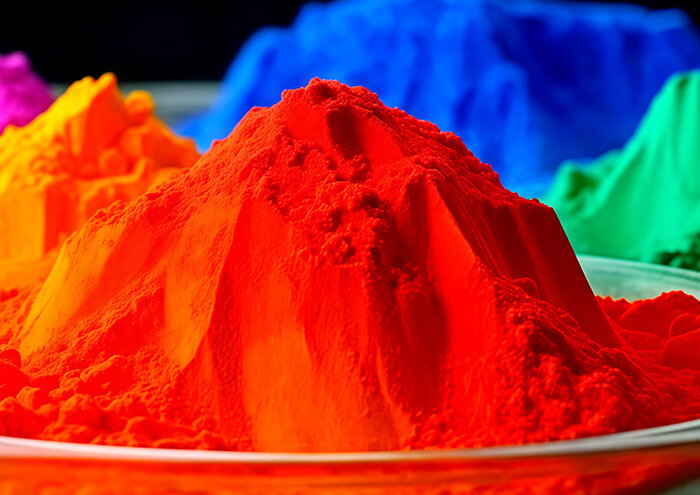

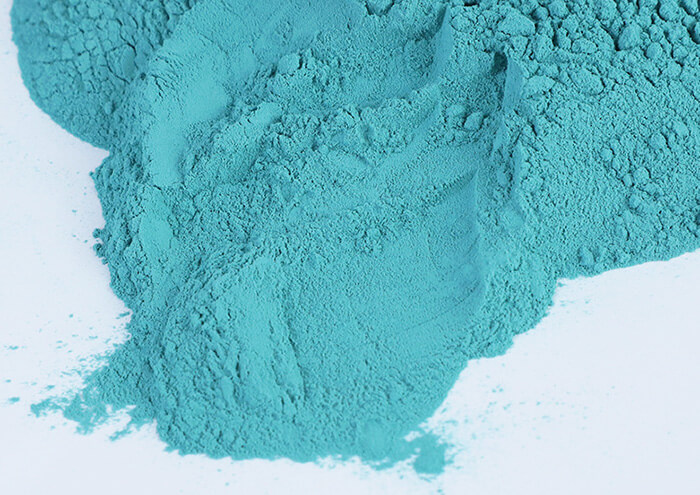

Thermosetting powder coatings are environmentally friendly coatings composed of resins, curing agents, pigments, fillers and additives. Through electrostatic spraying or fluidized bed coating followed by heat curing, they form a tough protective layer.
Eco-Friendly: Solvent-free, zero VOC emissions
High Efficiency: Up to 95% material utilization with overspray recycling
Easy Application: Ready-to-use, no viscosity adjustment required
Superior Performance: Excellent adhesion, impact resistance and mechanical strength
Wide Temperature Range: Stable performance from -40°C to 200°C
Aesthetic Variety: Available in gloss, matte, textured and special-effect finishes
|
Parameter |
Specification |
Test Standard |
|
Specific Gravity |
1.1-1.8 g/cm³ |
Varies by type/color |
|
Particle Size Distribution |
<125μm (85% between 60-90μm) |
GB/T 6554 |
|
Gel Time (180°C) |
60-300 sec |
GB/T 16995 |
|
Horizontal Flow |
18-35 mm |
GB/T 6554 |
|
Volatile Content |
<1% |
GB/T 1725 |
|
Storage Stability |
12 months (<30°C) |
- |
1. Standard Grade: 180°C/15min curing, general purpose
2. Low-Temperature Cure: 120-160°C curing, suitable for heat-sensitive substrates
3. Fast Cure: 200°C/10min curing, improves production efficiency
4. Super Durable: Special polyester formula, >1500 hours weatherability
5. Special Effects: Wrinkle, sand texture, metallic finishes

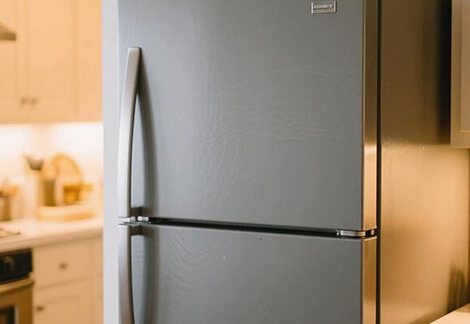

Refrigerators, washing machines, microwave oven housings
Radiators, engine parts, wheels
Aluminum profiles, metal railings, solar water heaters
Instruments, valves, machinery housings
Metal furniture, office equipment
Oil, gas, and water supply pipes
Technical Leadership: Offers both standard (200°C/10min) and low-temperature (120-160°C) curing products
Quality Assurance: ISO9001, ISO14001 certified with complete quality control system
Environmental Compliance: Meets RoHS requirements, non-toxic

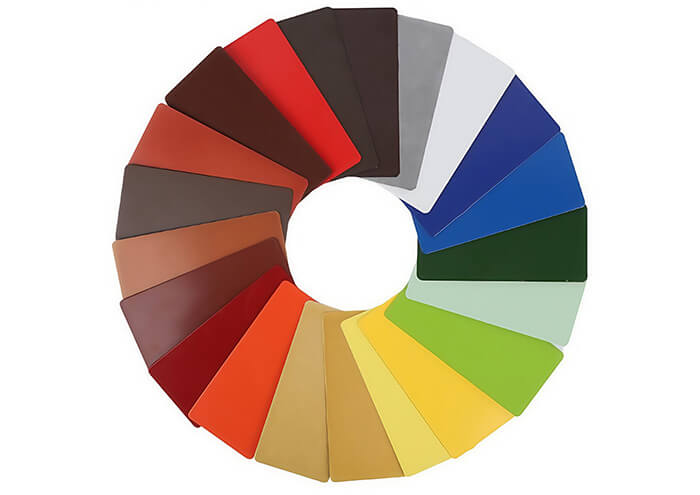

Customization Service: Tailored colors, gloss levels and texture effects
Technical Support: Full-process guidance from pretreatment to application
- Packaging: 20kg/box (PE-lined carton)
- Storage Conditions: Dry, ventilated area <30°C, away from heat sources
- Shelf Life: 12 months (re-test if expired)
- Transportation: Non-hazardous, avoid sunlight and rain exposure
- MOQ 100 kg, bulk discounts available
- Flexible payment terms
- Global shipping by sea/air/land
- Multiple packaging options
